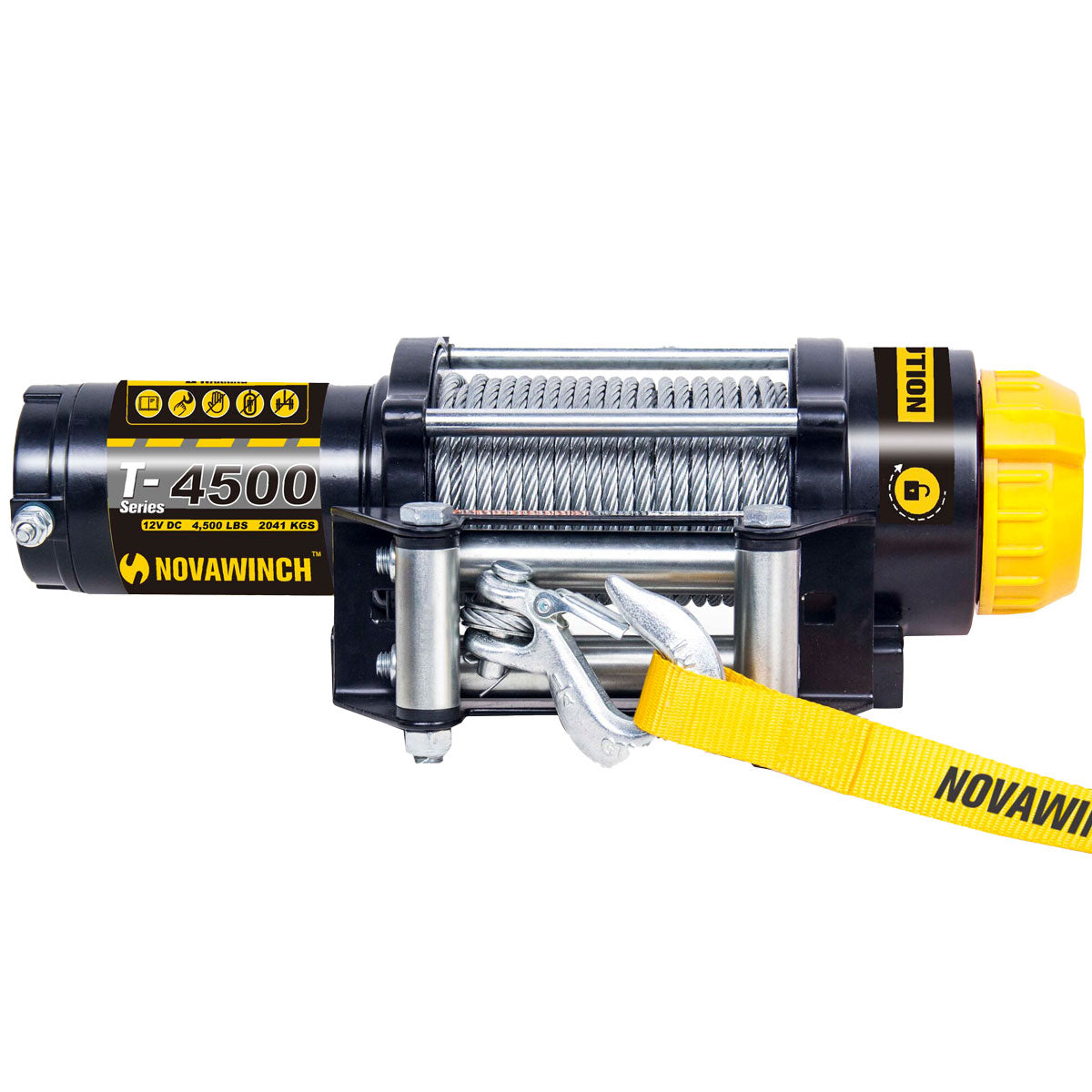

12V 4500lb Small Frame Electric ATV Winch with Wire Rope & Remote - NVT4500
Sale
12V 4500lb Small Frame Electric ATV Winch with Wire Rope & Remote - NVT4500

Novawinch 12V 4500lb Small Frame Electric ATV Winch with Wire Rope & Remote - NVT4500

SKU: {SKU}

|
(0)
$150.48

WAS

|
20% Off
0.00 inc.VAT)
0 in stock
Made to order
Limited Warranty
Learn more

The Novawinch NVT4500 is a powerful and reliable 4500lb 12V electric ATV/UTV winch. It offers power and superb waterproof features.

Choose:
Choose:
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Order within 03h 41m 52s for delivery tomorrow
Complete your setup:
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Order within 03h 41m 52s for delivery tomorrow

Maximise your ATV or UTV's capability with the Novawinch NVT4500 4500lb (2,041kg) 12V Electric Winch. This robust, small-frame winch is specifically designed for serious off-road use, offering superior pulling power and dependable performance for your ATV winch and UTV winch needs. Engineered to provide the ultimate winching solution for ATVs and UTVs, the NVT4500 ensures you're always prepared for demanding recovery operations. This reliable 12V winch boasts a powerful 4500lb capacity.

The winch’s high-efficiency motor is engineered to minimise battery consumption, enabling longer and more demanding recoveries without undue strain on your vehicle’s power system. An IP67 waterproof winch rating provides complete protection of the motor, gearbox, and drum from water, mud, and dust, ensuring reliable operation even in the harshest conditions – perfect for tough ATV recovery situations.

The automatic spring brake ensures solid and secure holding at full load, providing an added layer of safety during operation. The clockable mounting design provides flexible installation options, making it easy to integrate the winch with various ATV and UTV models. To provide the power needed in demanding situations, the NVT4500 is equipped with a durable wire rope winch, offering robust and reliable recovery in any situation.

Key Features:

  • 4500lb (2,041kg) Pulling Capacity: Provides ample power for ATV and UTV applications.
  • 12V Electric Motor: Ensures reliable and consistent performance.
  • High-Efficiency Motor: Designed to minimise battery consumption, maximising your time on the trails.
  • IP67 Waterproof Rating: Protects the motor, gearbox, and drum from water and dust, guaranteeing reliable operation in harsh environments.
  • Automatic Spring Brake: Ensures solid and secure holding at full load, providing added safety during operation.
  • Clockable Mounting Design: Provides flexible installation options, making it easy to integrate the winch with various ATV and UTV models.
  • Durable Wire Rope: Ensures robust and reliable recovery in any situation.
Will This Winch Fit My Vehicle?
Rated Line Pull: 4,500lb (2,041kg) single line
Motor (Permanent magnet): DC 12V: 3.0hp / 2.2kW
Gear Train: 3 stage planetary gear.
180:1 ratio
Clutch: Sliding ring gear
Braking Action: Mechanical, automatic load holding
Drum Size: 1.73" x 4.88" (44mm x 124mm)
Handheld Control: Waterproof handheld remote, 9.85' (3.0m) cord. Waterproof mini-rocker remote, 9.85' (3.0m) cord
Rope Size: 7/32" x 55.8' (5.4mm x 17m)
Winch Dimension: L:15.20" x W:4.53" x H:4.76" (L:386mm x W:115mm x H:121mm)
Bolt Pattern: 6.6" x 3" (168mm x 76mm)
Net Weight: 30.8lb (14kg)
Line Pull (lbs/kg) Line Speed (fpm/mpm) Current (Amps)
0 lbs / 0 kg 13.1 fpm / 4.0 mpm 30 Amps
4500 lbs / 2043 kg 4.6 fpm / 1.4 mpm 185 Amps
Brochure:
Download

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

$150.48
ADD TO CART

Reviews and Q&A

- No reviews collected for this product yet -
Be the first to write a review
5.0
581 reviews
Anonymous

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

0 days ago
Q
Will using my winch drain my vehicle's battery?
A
Yes! Electric winches can draw a significant amount of power and can definitely drain your vehicle's battery if used extensively or improperly. Avoid continuous winching for extended periods. Give the battery time to recover between pulls.
Q
Why is my winch just clicking?
A
A clicking sound usually indicates a faulty solenoid. This solenoid is a switch that sends power to the winch motor. If you're hearing clicking but the winch isn't turning, the solenoid is likely the problem. We sell replacement solenoids specifically designed for our winches. If your winch is still under warranty, get in touch with us! We'll troubleshoot the issue and repair or replace the solenoid free of charge if it's a warranty-covered defect.
Q
What does the term "rated line pull" mean?
A
It's how much weight the winch can safely pull at its strongest. Think of it like the winch's muscle power. A higher number means it can pull heavier things. Always choose a winch with a rating higher than what you expect to pull!
Q
Is this winch waterproof?
A
Yes, our electric winches are rated IP67/IP68 which provides complete protection of the motor, gearbox, and drum from water, mud, and dust. However, we do recommended a winch cover to protect the winch when not in use.
Q
Does the winch come with all the necessary wiring and connectors?
A
Yes it does!
