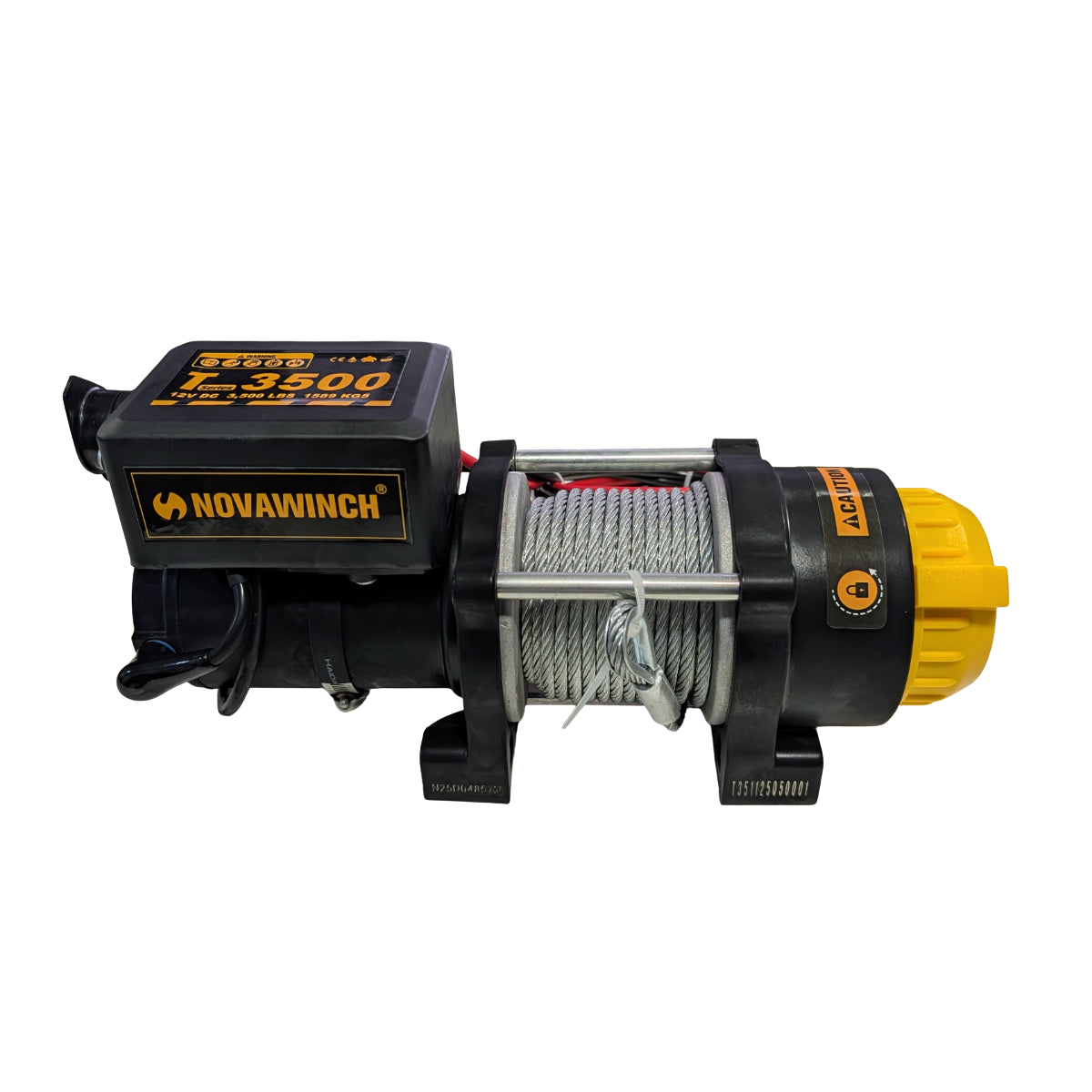

12V 3500lb Small Frame Electric ATV/UTV Winch with Wire Rope & Remote - NVT3500
Sale
12V 3500lb Small Frame Electric ATV/UTV Winch with Wire Rope & Remote - NVT3500

Novawinch 12V 3500lb Small Frame Electric ATV/UTV Winch with Wire Rope & Remote - NVT3500

SKU: {SKU}

|
(0)
$145.00

WAS

|
20% Off
0.00 inc.VAT)
0 in stock
Made to order
Limited Warranty
Learn more

The Novawinch NVT3500 is a compact and powerful 3500lb 12V electric ATV/UTV winch. The wire rope, waterproof rating, and tough design will get you through anything.

Choose:
Choose:
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Order within 03h 41m 52s for delivery tomorrow
Complete your setup:
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Order within 03h 41m 52s for delivery tomorrow

Dominate any off-road challenge with the Novawinch NVT3500 3500lb (1,587kg) 12V Electric Winch. This high-performance, small frame ATV winch and UTV winch is engineered to excel in extreme conditions, providing both reliable power and exceptional durability for all your ATV recovery winch and UTV recovery winch needs. Built to maximise your ATV or UTV's capability, the NVT3500i ensures you're ready for any recovery task, no matter how demanding. The winch boasts a powerful 3500lb capacity.

This reliable 12V winch’s high-efficiency motor is designed to minimise battery drain, allowing you to extend your time on the trail without concern for excessive power consumption. An IP67 waterproof winch rating guarantees that the motor, gearbox, and drum remain fully operational, even in the harshest wet and muddy environments.

The automatic spring brake ensures solid and secure holding at full load, providing an added layer of safety during operation. The clockable mounting design provides flexible installation options, making it easy to integrate the winch with various ATV and UTV models. For situations where ruggedness and dependability are essential, the NVT3500i comes equipped with a robust wire rope winch, ready to tackle any recovery scenario with confidence.

Key Features:

  • 3500lb (1,587kg) Pulling Capacity: Provides ample power for demanding ATV and UTV recovery tasks.
  • 12V Electric Motor: Ensures reliable and consistent performance in the backcountry.
  • High-Efficiency Motor: Designed to minimise battery consumption.
  • IP67 Waterproof Rating: Guarantees operation in wet and muddy conditions.
  • Automatic Spring Brake: Provides solid and secure holding at full load.
  • Clockable Mounting Design: Allows for flexible installation options to make the winch fit for you.
  • Robust Wire Rope: Built to take on anything the trails throw at you.
Will This Winch Fit My Vehicle?
Rated Line Pull: 3,500lb (1,587kg) single line
Motor: DC 12V: 2.8hp / 2.1kW
Gear Train: 3 stage planetary gear.
180:1 ratio
Clutch: Sliding ring gear
Braking Action: Mechanical, automatic load holding
Drum Size: 1.73" x 3.15" (44mm x 80mm)
Handheld Control: Waterproof handheld remote, 9.85' (3.0m) cord
Waterproof mini-rocker remote, 9.85' (3.0m) cord
Rope Size: 13/64" x 45' (5mm x 13.7m)
Winch Dimension: L:13.62" x W:4.53" x H:6.30" (L:398mm x W:115mm x H:160mm)
Bolt Pattern: 4.9" x 3" (124mm x 76mm)
Net Weight: 28.7lb (13kg)
Line Pull (lbs/kg) Line Speed (fpm/mpm) Current (Amps)
0 lbs / 0 kg 13.7 fpm / 4.2 mpm 26 Amps
3500 lbs / 1589 kg 5.6 fpm / 1.7 mpm 180 Amps
Brochure:
Download

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

$145.00
ADD TO CART

Reviews and Q&A

- No reviews collected for this product yet -
Be the first to write a review
5.0
581 reviews
Anonymous

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

0 days ago
Q
Will using my winch drain my vehicle's battery?
A
Yes! Electric winches can draw a significant amount of power and can definitely drain your vehicle's battery if used extensively or improperly. Avoid continuous winching for extended periods. Give the battery time to recover between pulls.
Q
Why is my winch just clicking?
A
A clicking sound usually indicates a faulty solenoid. This solenoid is a switch that sends power to the winch motor. If you're hearing clicking but the winch isn't turning, the solenoid is likely the problem. We sell replacement solenoids specifically designed for our winches. If your winch is still under warranty, get in touch with us! We'll troubleshoot the issue and repair or replace the solenoid free of charge if it's a warranty-covered defect.
Q
What does the term "rated line pull" mean?
A
It's how much weight the winch can safely pull at its strongest. Think of it like the winch's muscle power. A higher number means it can pull heavier things. Always choose a winch with a rating higher than what you expect to pull!
Q
Is this winch waterproof?
A
Yes, our electric winches are rated IP67/IP68 which provides complete protection of the motor, gearbox, and drum from water, mud, and dust. However, we do recommended a winch cover to protect the winch when not in use.
Q
Does the winch come with all the necessary wiring and connectors?
A
Yes it does!
